Screen Printing Machine for Round Face Product(Barrel)
Specifications

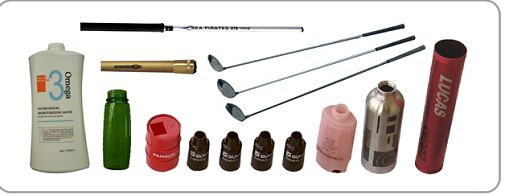

Shape of Piece： cylinder-shaped
Maximum Dia.： Φ330mm
Maximum frame size： 1400*400mm
Maximum Printing Area：1050*260mm
Maximum Printing Speed：360PCS/hr
Power： 220V/50HZ/50W
Air Pressure ： 6-7 bar
Machine Weight ： 261kg
Machien Size： 1300*1700*1500(LxWxHmm)
Features:
1, LCD liquid crystal panel, Chinese display, microcomputer controls each function, easy operation, equipped with five automatic counter.
2,Using high-quality aluminum body, durable.
3, Simple, accurate micro-adjust XYR color to color plate adjustments:
X(left/right) Y(Front/back) R (rotation)
4,You can not drop empty lines before and after the glue to prevent the pause when the ink dries.
5, Automatic balanced squeegee pressure, ensuring clean wiper blade pressure adjustable.
Quality Control:
1,Automated CNC Processor and provide customers the high quality products
2,Using the German FESTO and Japan SMC pneumatic parts
3,First printing machine with color match lights over the world, which can confirm the color according to the samples
4,Precise CNC fine adjustment of the pad; solving the problems of pad deformation
